MAINTENANCE   POWER-PACK

Fits:  PIPER, COMMANDER, NATION, SOCATA, BELLANCA' BEECHCRAFT & CESSNA

AVAILABLE IN 24 Volt and 12 Volt

This gear Maintenance power-pack will mount in the existing location and secure to the same pad as most Prestolite HYC Series power-packs.

The bracket was designed for universal mounting in the standard Prestolite HYC footprint.

It comes with mounting bracket, 4 rubber vibration isolators, mounting hardware and aluminum reservoir with dip-stick.

You will need to complete the 2 aluminum hydraulic line connections as shown in the pictures.

The unit is much easier to install and will outperform your HYC pump unit.

Unit is being sold as a "Maintenance Powerpack". Although, since there are no new HYC5000 Series pumps available from any aircraft manufacture, the unit is eligible to be installed with a field approved 337 since you have no other options unless you want a used/overhauled 50 year old pump in the aircraft.

NOTE: This same style pump has been factory installed in later model Cessna, Commander and Pipers. It's not new, it just was never made available for your Model & Year aircraft.

You need to call before ordering so we can get the aircraft pump pressure requirements. In addition, some aircraft do not have a return line to the pump assembly, we will need to determine what additional parts if any are needed. Plus, we offer a $95.00 cash discount with free shipping.

RETURN LINK:  Piper Gear Powerpack HYC5005 HYC5006 HYC5001 (selectfirellc.com)

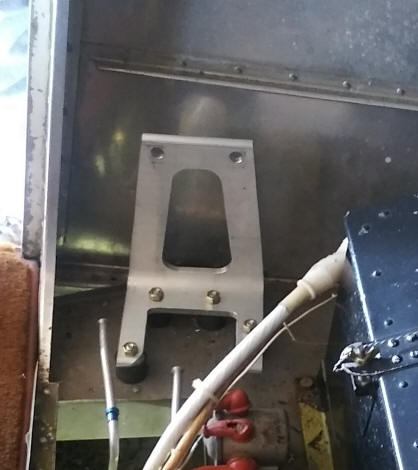

Mounting Bracket in Piper PA-28R Arrow.

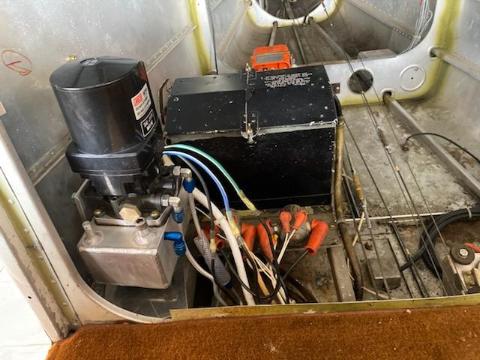

Unit mounted in Piper PA28R.

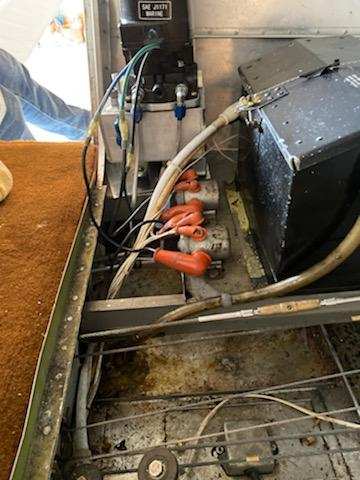

Wiring is the exact same

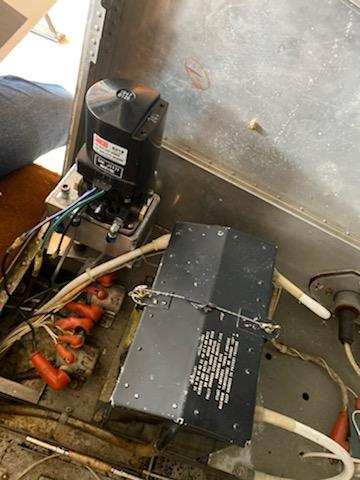

Physical Location is the same

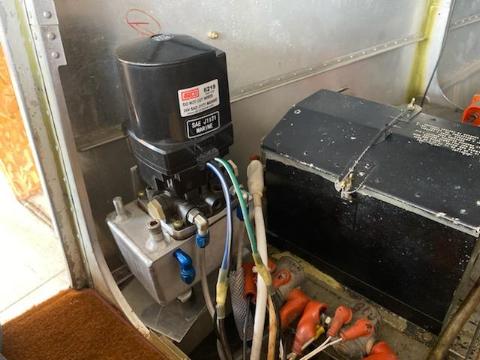

Slim Side Profile

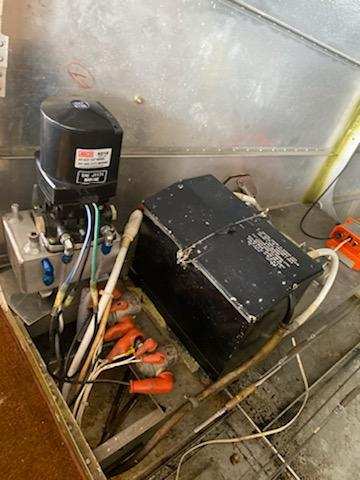

Fill port and Dip stick.
